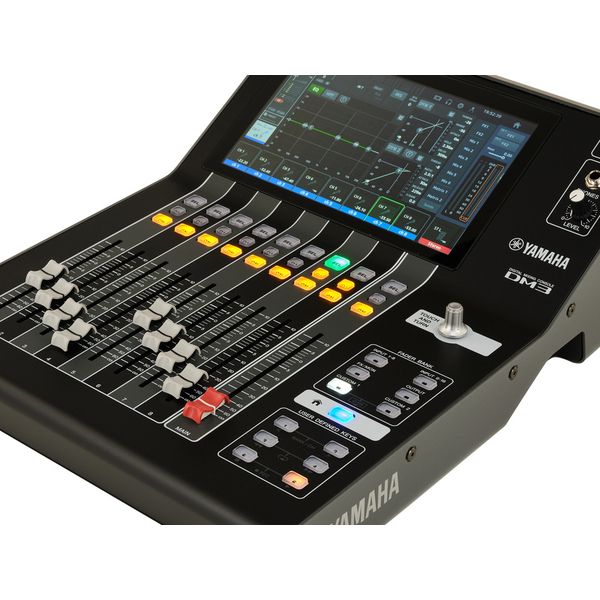

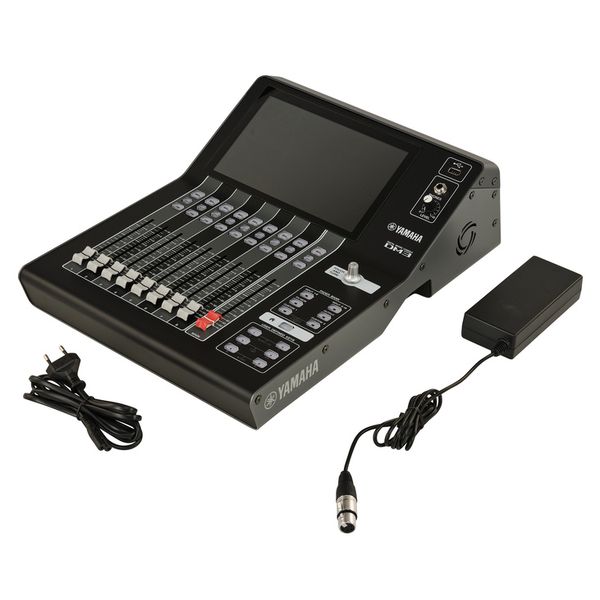

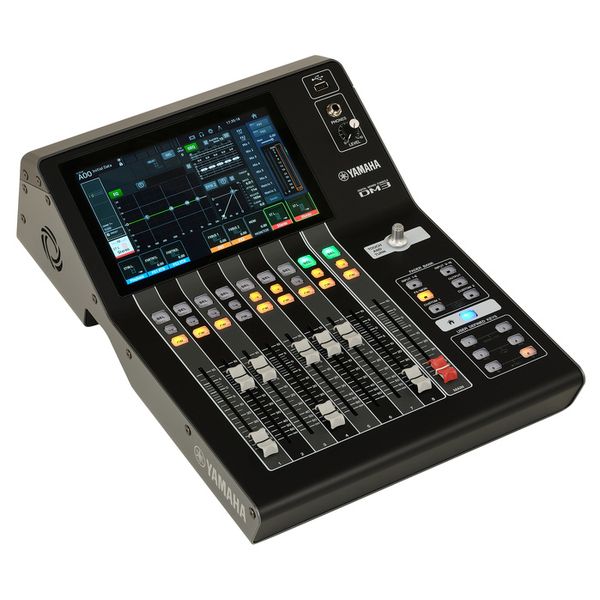

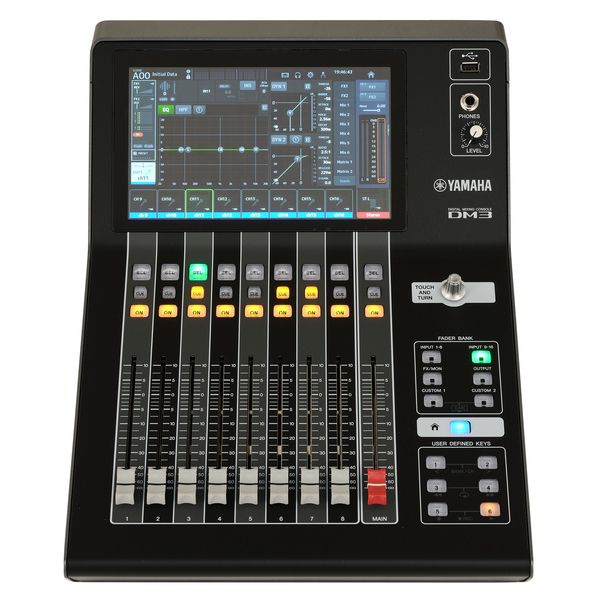

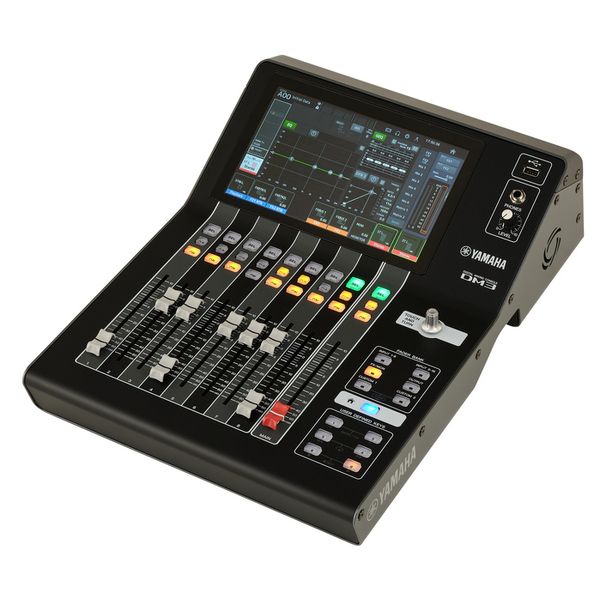

Yamaha DM3

Vis oversættelse

16-Channel Mixer

For studio, stream and live applications

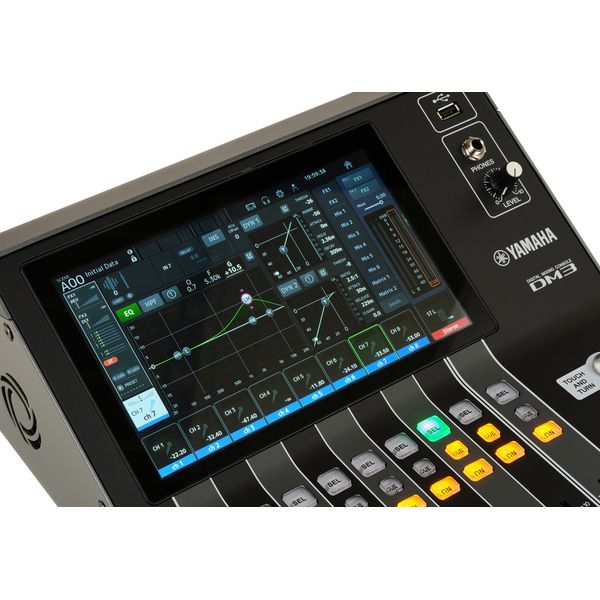

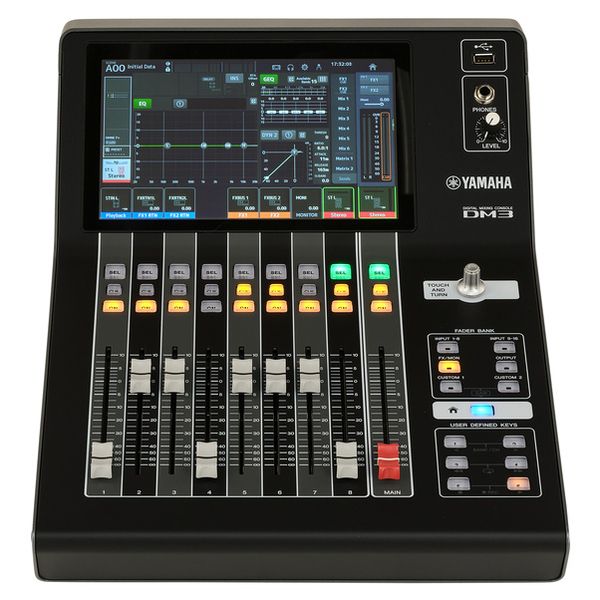

9" Multi touchscreen

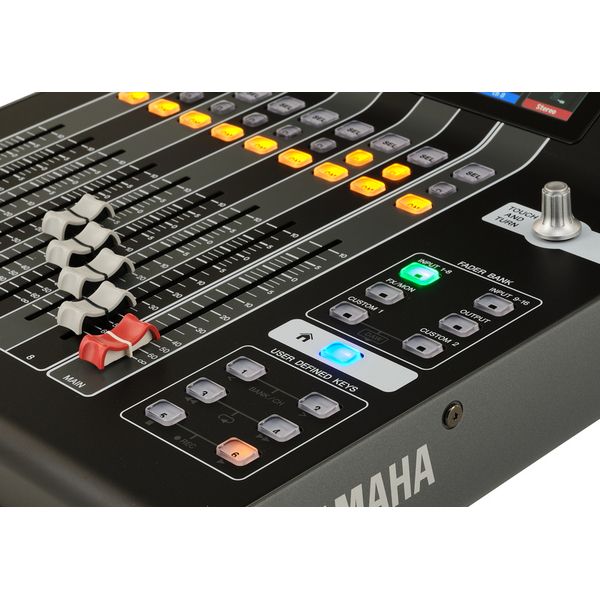

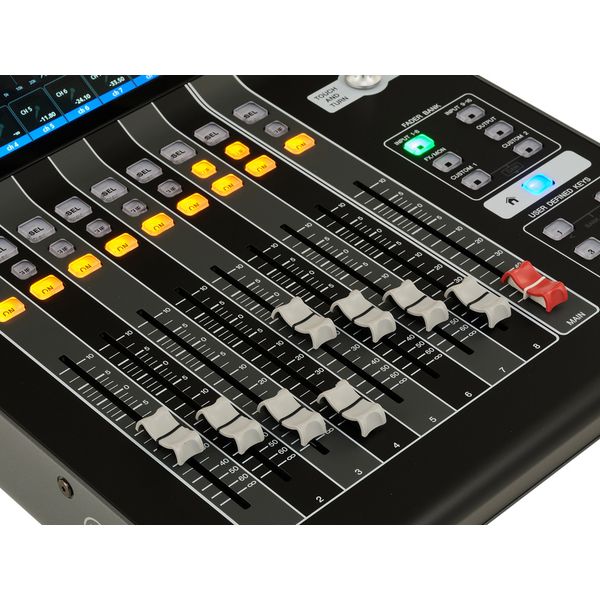

9 Motorised faders
"Touch and Turn" control
18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
16 Mono Inputs + 1 Stereo + 2 FX Return
8 Outputs
Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
DAW Remote Feature (HUI)
OSC support for installations
Editor app available for tablet (tablet not included)
16 x 16 DANTE interface with 16 inputs and outputs
6 Freely assignable buttons
2 x 2 Channel recording/playback via USB port
18 Selectable effects + GEQ on Mix 1-6 and Stereo Bus
8 Groups with DCA roll-out

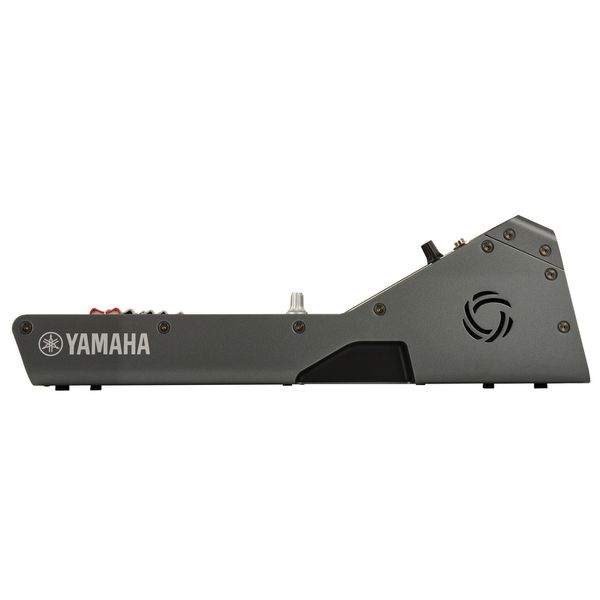

Dimensions (W x H x D): 320 x 140 x 455 mm
Weight: 6.5 kg
Includes Steinberg Cubase AI and VST Rack Elements

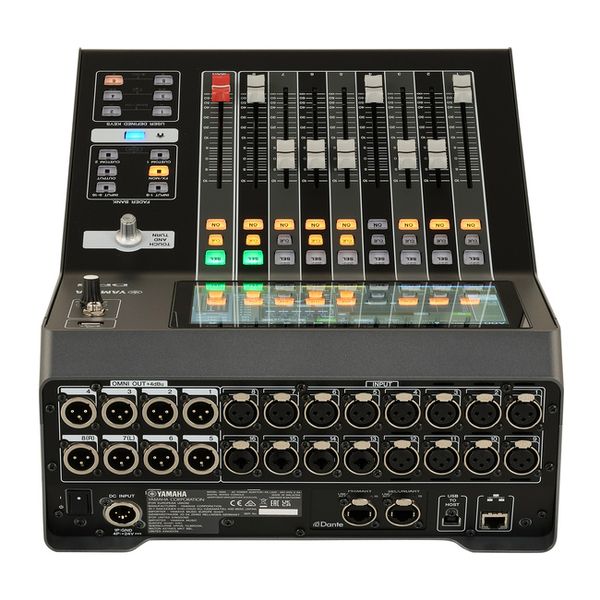

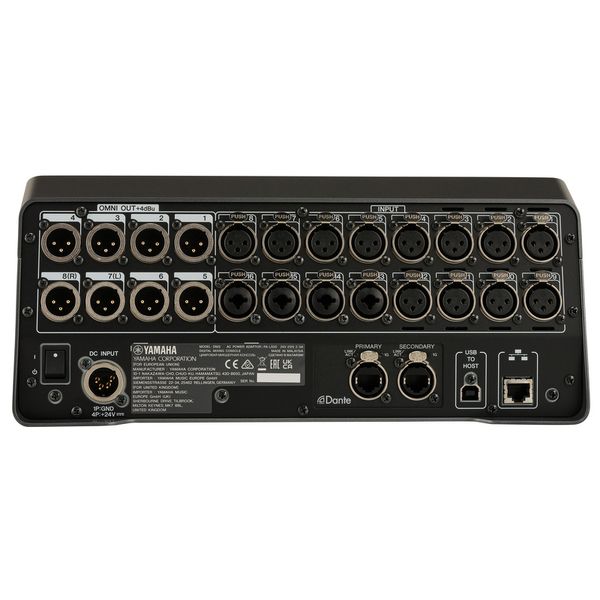

Connections

16 Mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
8 Line outputs: XLR
2 x Dante input (RJ45)
Stereo headphone output: 6.3 mm jack
USB to Host
USB to Device
Ethernet RJ45

30 dages-Money Back garanti

3 års Thomann garanti

Fås siden September 2023

Artikelnummer 564038

salgsenhed 1 stk

User Interface Physical/remote

Number of faders 9

DSP Input channels 16

Mic Preamp 16

Physical outputs 8

Digital stagebox connection No

Hotspot No

Multitrack Record Yes

integratated Player/Rec via USB/SD stereo

19" Rackmount Optional

Max.number of input channels 16

Microphone Inputs 16

Analog Line Inputs 16

DSP Output Channels 8

Analog Line Outputs 8

Busses 6

Mono-Line Input 16

Stereo-Line Input 0

Motorfader 1

Computer interface USB

Ethernet Yes

Special Features DANTE, 18x18 USB Audio Interface

Soundcard interface USB-B

Recorder Format WAV/MP3

RTA No

FX Processor 2

31 Band EQ 0

Delay Input 1

Delay Output 1

Matrix 2

DCA/VCA Groups 0

Midi Connector No

Sample rate 96 kHz

Separate Personal Monitor system No

Expansion Card slots 0

Digital ADAT No

Digital SPDIF No

Digital AES3/ASESEB No

Digital MADI No

Digital Dante Yes

Case No

Height 140 mm

Width 320 mm

Depth 455 mm

Weight 6,5 kg
